GxP Backup, Disaster Recovery & SOP Qualification

Regulatory Mandate (/backup-restore)

In regulated Life Sciences manufacturing, data durability and continuity are strictly audited under:

  • FDA 21 CFR § 11.10(c): Protection of records to enable their accurate and ready retrieval throughout the records retention period.
  • EU Annex 11 Clause 7 (Data Storage): Regular backups of all relevant data must be made. Integrity and accuracy of backup data and the ability to restore the data must be checked during validation and monitored periodically.
  • EU Annex 11 Clause 16 (Business Continuity): Arrangements for alternative operations in the event of a system breakdown.
  • ISPE GAMP 5 Appendix S1 (Business Continuity): Defining RTO (Recovery Time Objective) and RPO (Recovery Point Objective).

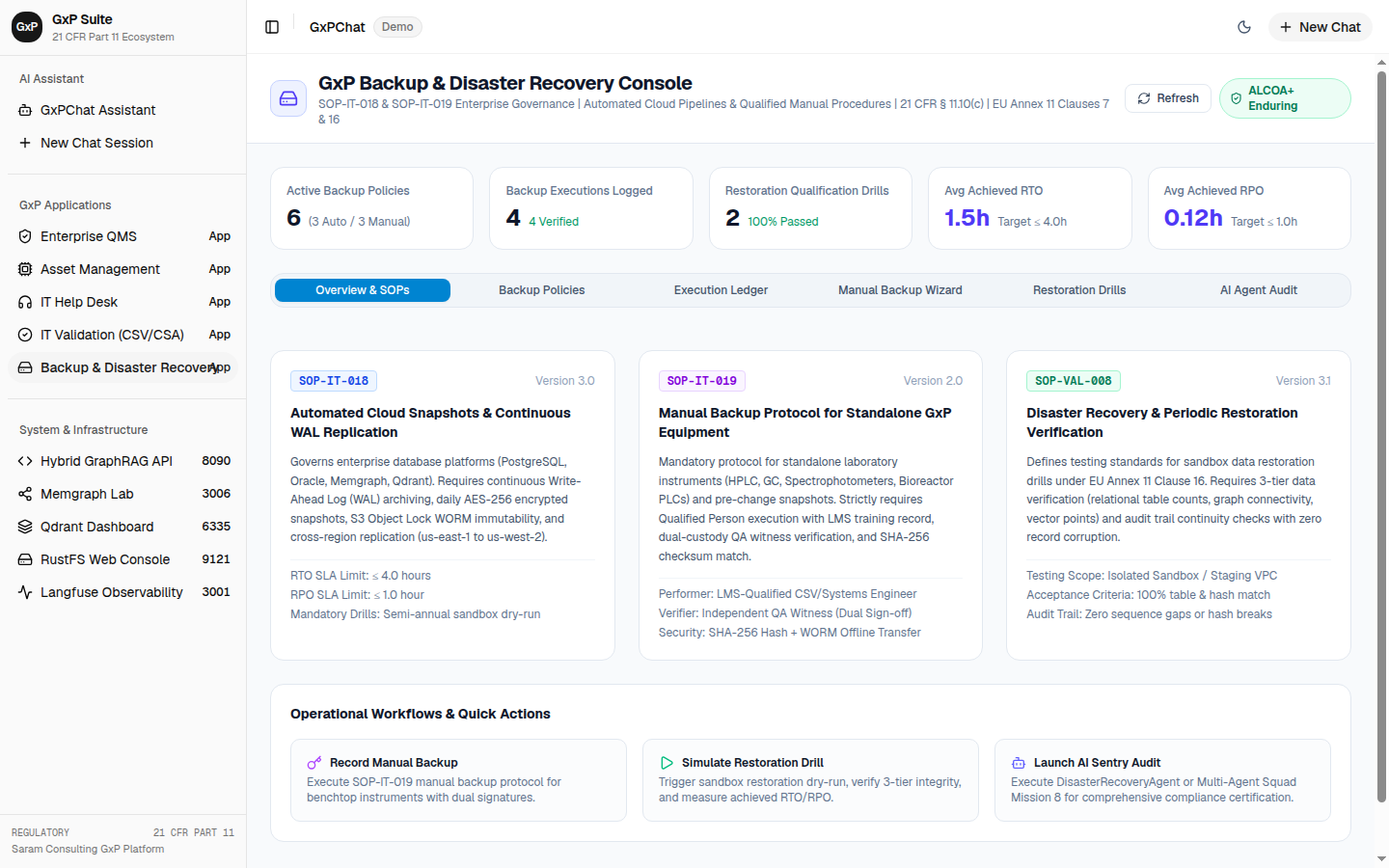

GxP Backup & Disaster Recovery Console Interface

Dual Backup Architecture

The platform governs two distinct operational backup tracks:

1. Automated Cloud Snapshot & WAL Archiving (SOP-IT-018)

  • Continuous Write-Ahead Log (WAL) streaming and daily AES-256 encrypted database snapshots.
  • Geographic replication to secondary disaster recovery data centers.
  • Write-Once-Read-Many (WORM) immutability enforcement.
  • Strict SLA thresholds:
    • Recovery Point Objective (RPO) <= 1.0 hour.
    • Recovery Time Objective (RTO) <= 4.0 hours.

2. Manual Qualified Person (QP) Dual-Custody Protocol (SOP-IT-019)

  • Applied to standalone, air-gapped laboratory analytical instruments (such as Waters Alliance HPLC EQ-HPLC-001 or benchtop mass spectrometers) that cannot run network agents.
  • Mandatory Requirements:
    1. Operator qualification verification against enterprise LMS (LMS-SOP-IT-019-QUAL).
    2. Physical WORM optical/tape media burning.
    3. Cryptographic SHA-256 hash generation of raw chromatographic sequence folders.
    4. Dual 21 CFR Part 11 digital signatures (PERFORMED_BY system operator and independent QA VERIFIED_BY).

Web Console Features

1. Overview & Policy Catalog

  • KPI metrics: Active Policies, Total Executions, Periodic Restoration Drills, and SLA Compliance Rate.
  • Registry of automated cloud snapshot and manual qualified person backup policies.

2. Append-Only Execution Ledger

  • Displays timestamped backup runs with byte size, storage URI, SHA-256 checksums, and signature GUIDs.
  • Protected by PostgreSQL database trigger prevent_backup_records_tampering() which rejects any SQL UPDATE or DELETE statements.

3. Manual Backup Wizard

  • Step-by-step modal for Qualified Persons to record manual instrument backup runs:
    • Selects instrument and governing SOP.
    • Verifies LMS training certification.
    • Generates SHA-256 checksum.
    • Collects primary performer and QA verifier Part 11 electronic signatures.

4. Restoration Dry-Run Qualifications

  • Historical record of periodic sandbox restoration tests.
  • Tracks target versus achieved RTO and RPO.
  • Evaluates 3-tier database integrity:
    • PostgreSQL relational row count reconciliation
    • Memgraph graph topology path reconciliation
    • Qdrant vector count and payload integrity
  • Records QA approval signature upon successful dry-run completion.

5. Multi-Agent Disaster Recovery Audit Runner

  • One-click launcher executing autonomous Multi-Agent Squad Mission 8:
    • DisasterRecoveryAgent: Audits cloud backup snapshots and continuous replication.
    • AssetManagementAgent: Verifies physical instrument status and calibration validity.
    • DataIntegrityAuditAgent: Audits dual signatures, LMS qualification validity, and SHA-256 integrity.
    • LeadCsvOrchestrator: Evaluates restoration drill SLA compliance and issues formal qualification disposition.

Operational Use Case Scenario Workflows

Disaster Recovery and Data Durability govern the preservation of regulated electronic records against hardware destruction, ransomware, or accidental corruption.

Scenario 1: Periodic Sandbox Restoration Dry-Run with 3-Tier Data Reconciliation

sequenceDiagram
    autonumber
    actor DR as Disaster Recovery Lead
    actor QA as QA Validation Auditor
    participant UI as Backup & DR Console (/backup-restore)
    participant Sandbox as Isolated DR Sandbox
    participant DR_Agent as DisasterRecoveryAgent
    participant PG as PostgreSQL Engine
    participant Mem as Memgraph LPG Engine
    participant Qdr as Qdrant Vector Engine


    DR->>UI: Initiates periodic restoration qualification drill
    UI->>Sandbox: Restores latest AES-256 cloud snapshot & WAL stream
    Sandbox-->>UI: Sandbox container active and listening
    UI->>DR_Agent: Executes 3-tier data reconciliation audit
    DR_Agent->>PG: Reconciles table row counts and schema checksums
    DR_Agent->>Mem: Reconciles LPG node and edge counts (505 docs, 202 assets)
    DR_Agent->>Qdr: Reconciles 1,536-dim vectors and payload metadata
    DR_Agent-->>UI: Asserts 100% parity; RTO = 18 min (SLA <= 4h), RPO = 0 min
    QA->>UI: Reviews reconciliation matrix & signs Part 11 certification

1. Context & Operational Pre-conditions

  • Regulatory Requirement: EU Annex 11 Clause 7 requires regular backups and periodic testing of the ability to restore data.
  • System State: Continuous WAL replication active under SOP-IT-018; target RTO is 4.0 hours, target RPO is 1.0 hour.

2. Sandbox Drill Initiation

  1. The Disaster Recovery Lead navigates to /backup-restore and opens Restoration Dry-Run Qualifications.
  2. Clicks Initiate Sandbox Drill.
  3. System pulls the most recent daily encrypted snapshot from object storage and restores it into an ephemeral sandbox environment.

3. Automated 3-Tier Database Integrity Reconciliation

The DisasterRecoveryAgent executes automated reconciliation across the three databases:

  1. PostgreSQL Relational Layer:
    • Compares row counts across all 18 tables against source database pre-snapshot metadata.
    • Result: 100% row match; zero orphan foreign keys.
  2. Memgraph In-Memory Graph Layer:
    • Verifies 505 Document nodes, 202 Asset nodes, and all topological relationships.
    • Result: Graph path traversals execute with zero integrity faults.
  3. Qdrant Vector Layer:
    • Audits 1,536-dimensional embedding collection count and payload GUIDs.
    • Result: 100% vector parity with zero missing points.

4. SLA Evaluation & QA Sign-Off

  • Achieved RTO: 18 minutes (SLA benchmark: $\le$ 4 hours).
  • Achieved RPO: 0 minutes (continuous streaming captured the final transaction commit).
  • The QA Validation Auditor reviews the reconciliation report and applies an electronic signature: I certify that the sandbox restoration dry-run successfully verified data recoverability and SLA compliance.
  • The qualification certificate is archived in PostgreSQL table restoration_drill_runs.

Scenario 2: Standalone Analytical HPLC Manual Dual-Custody Backup (SOP-IT-019)

1. Context & Operational Pre-conditions

  • Regulated Instrument: Air-gapped Waters Alliance HPLC EQ-HPLC-001.
  • Governing SOP: SOP-IT-019 (Standalone Analytical Instrument Qualified Person Dual-Custody Backup).
  • Frequency: Weekly manual archive of chromatographic sequence folders.

2. Manual Backup Wizard Workflow

  1. The Qualified Laboratory Analyst opens /backup-restore and clicks Manual Backup Wizard.
  2. Selects Instrument EQ-HPLC-001 and Policy SOP-IT-019.
  3. System performs an automated LMS check:
    • Queries LMS database for credential LMS-SOP-IT-019-QUAL.
    • Confirms Analyst certification is active.

3. WORM Media Creation & Checksum Calculation

  1. The analyst burns the raw chromatographic run folder 2026_09_SEQ_04 onto Write-Once-Read-Many (WORM) optical media.
  2. Computes the SHA-256 hash using the validated lab utility: e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855
  3. Enters the calculated hash and optical disc physical storage slot identifier (SLOT-SAFE-A12).

4. Dual 21 CFR Part 11 Electronic Signature

  1. Primary Performer: Analyst enters credentials and signs with reason PERFORMED_BY: I certify that the raw chromatographic data was copied without alteration.
  2. Secondary Verifier: Independent QA Specialist inspects the media label and hash printout, enters credentials, and signs with reason VERIFIED_BY: I have independently verified media integrity and custody documentation.
  3. Record is written to the append-only table backup_execution_ledger protected by database triggers against modification.

Scenario 3: Autonomous Multi-Agent Squad Mission 8 Audit Execution

1. Context & Operational Pre-conditions

  • Mandate: Annual Data Integrity & Disaster Recovery Qualification Audit.
  • Scope: Both automated cloud repositories and physical standalone instruments.

2. Mission 8 Squad Launch

  1. System Administrator clicks Run Mission 8 Squad Audit on /backup-restore (or executes python demo_multi_agent_teams.py --mission 8).
  2. The squad executes in structured parallel coordination:
    • DisasterRecoveryAgent: Audits 365 days of automated snapshots, verifying 100% encryption at rest (AES-256) and zero SLA breaches.
    • AssetManagementAgent: Audits all 101 GxP physical assets, cross-referencing calibration status with backup frequency.
    • DataIntegrityAuditAgent: Audits all manual backup entries, confirming dual signatures and valid LMS training records for all operators.
    • LeadCsvOrchestrator: Synthesizes findings into a unified Disaster Recovery Qualification Report.

3. Audit Disposition

  • Overall Compliance Score: 100%.
  • Nonconformances Detected: 0.
  • Audit Status: Fully Qualified / Inspection Ready.
  • Result is committed to PostgreSQL and rendered with an exportable audit certificate.
